Five axis reciprocating paint spraying system for plastic frame shell

Short Description:

Condition: New Type: Other Substrate: Plastic,ABS parts,Metal parts Coating: Painting Place of Origin: Guangdong, China (Mainland) Brand Name: FOD Model Number: Faxis-5 Voltage: 380V/220v50HZ Power(W): 600w Dimension(L*W*H): L1500mm*W1200mm*H1800mm Weight: 320KG Certification: CE ISO9001 Warranty: 12 Months After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Delivery Time 10 days 1. Five Axis reciprocating pai...


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Condition:
    New
    Type:
    Other
    Substrate:
    Plastic,ABS parts,Metal parts
    Coating:
    Painting
    Place of Origin:
    Guangdong, China (Mainland)
    Brand Name:
    FOD
    Model Number:
    Faxis-5
    Voltage:
    380V/220v50HZ
    Power(W):
    600w
    Dimension(L*W*H):
    L1500mm*W1200mm*H1800mm
    Weight:
    320KG
    Certification:
    CE ISO9001
    Warranty:
    12 Months
    After-sales Service Provided:
    Engineers available to service machinery overseas

    Packaging & Delivery

    Delivery Time
    10 days

    1. Five Axis reciprocating paint spraying system Brief

    We specialized in manufacturing different type of axis automatic spray painting system covering single axis reciprocating spray painting system, X-Y axis spray painting system, Three, Four and Five axis spray painting system. The  technology is widely applied in various industries such as toy, electronics ,vacuum plating, wood door panel, automotive parts and plastic parts.

    2.   Five Axis reciprocating paint spraying system Main advantage

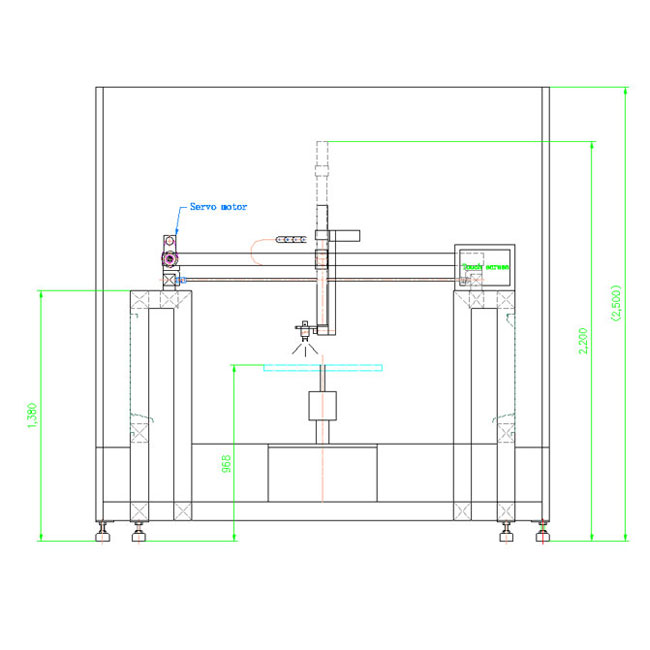

    The axis spray painting system designed on basis of servo reciprocating and R,T and Z axis. It provides stable and balanced painting surface treatment, especially the spray fluid, atomization, angle and distance is very flexible adjusted as per the product,

    It can be easily operated by one worker and the spraying parameters can be fast saved in PLC memory card .Our axis spray painting equipment has been in hot popular since in market. It helps modern company saves much labor cost and increases production capacity.

    3. Five Axis reciprocating paint spraying system Technical Parameter

    ,In put                                    220V,50HZ
    2,Output Power                                    600W
    3,Max Spraying Area                                   Max dia.50mm
    4,No. Spray Gun                                   1PCS
    5,Max No.of Work piece                                   4-120PCS
    6,Speed                                   (adjustable)
    7,Spay coating type                                 reciprocating 5 axis painting machine servo system
    8,Control Panel                                 PLC touch screen
    9,Dimensions(L*W*H)                                 1500mm*1200mm*1800mm
    10,Main Material                                 stainless  steel &steel
    11, X*Y*Z  travel area                                             850(X)*850(Y)*300(Z)
    12,Widely Application Laptop, display, LCD TV,Cellphone,MP3,Button,Desk computer Keyboard, Portable hard drive, Plastic ball, Car spare parts,  Photo Frame, Tablet computer pad

    .4. Five A
