Robot Automatic painting production line for car parts

Short Description:

Place of Origin: China (Mainland) Brand Name: FOD Model Number: F-Line Condition: New After-sales Service Provided: Engineers available to service machinery overseas Item: Automatic UV painting line Used for: Automatic UV&PU painting production Workpiece name: Vacuum metellazition plastic ring Line Input powder: 380V.3phase. Output: as per design conveyor: Chain conveyor Control: PLC touch screen Spray Gun: DEVILBISS Air Gun Warranty: 12 mounthes Delievery por...


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Place of Origin:
    China (Mainland)
    Brand Name:
    FOD
    Model Number:
    F-Line
    Condition:
    New
    After-sales Service Provided:
    Engineers available to service machinery overseas
    Item:
    Automatic UV painting line
    Used for:
    Automatic UV&PU painting production
    Workpiece name:
    Vacuum metellazition plastic ring
    Line Input powder:
    380V.3phase.
    Output:
    as per design
    conveyor:
    Chain conveyor
    Control:
    PLC touch screen
    Spray Gun:
    DEVILBISS Air Gun
    Warranty:
    12 mounthes
    Delievery port:
    Shenzhen SHEKOU or YANTIAN

    Packaging & Delivery

    Packaging Details
    FOD Standard export packing
    Delivery Time
    30working days

    Automatic UV Painting production line



    1.Application

    Automatic UV painting production line also called as Automatic UV painting production line.Which support one-step automatic painting production including : Loading—Antistatic—Flaming—Flash off—-Base coat—flash off—–Top coat——Paint drying—-UV curing—-cooling—Unloading. It’s also widely used together with Vacuum metallazition treatment to provide high quality surface treatment for Mobilephone shell,Plastic toys,Car spare parts,Cosmetic cup cap, Motorbike spare parts,bycikle parts,computer keyboard, remote controller, Tablet computer pad shell,Clock frame,Wood panel. ets.



    2.Advantage

    1.Automatic spray painting system support a stable and balance painting treatment all the time.

    2.Increaded capacity by one step prodcution. it helps customer save much labbor cost.

    3.Econonic since saves much paint than traditional painting production,because there is sensor system.it’s start painting only scanned products.

    4.It helps increase qualified goods percentage by full automatic drying oven and curing oven.

    5 It’s more enviromental by useing water curtain type and dry type spraying booth.Wasted paint can be collected cleaned in back tank.

    6.Easy to operate since we use PLC touch screen for General control.



    3.Design and Manufactry specification



    Item  Automatic UV painting line
    Model F-line
    Work piece name car spare parts
    Painting line length 50m(Designed as per customer products requipments)
    workpiece Size(L*W) Dia 50mm
    Power 90KW,380V,3phase ( as per final design)
    Painting production process 1,Loading,Antistatic dust free
    2,Base spray painting
    3,Flash off
    4,Top spray painting
    5,Flash off
    6,IR drying& UV Curing
    7,Cooling8.Unloading
    Chain conveyor system 1,Chain conveyor with spindle jigs
    2,1.25chain transit unit
    3,Steel alloy track
    4,Frequency conterters&gear motor
    5,chaing speed 0.2-3m/min
    Pretreatment 1,Dust free blower area 0.8m*0.9m
    2,Antistatic booth:
    Stainless steel machine boby
    filter net
    magic eye control
    centrifugal exhaust fan
    KING GLORY SL-006B electrostatic
    Water spray booth(base&top) 1,Size:3.35*2.5*2.8m
    2,Stainless steel machine body
    3,Stainless steel water tank
    4,Explosion-proof lighting system
    5,HEPA Filter
    6,Exhaust fan,Air volume-1200 m³/hr
    7,With explosion proof glass  observation window
    Self-rotation spray sytem 1,Rotation length:800mmX2
    2,Taiwan frequency converter
    3,China sanyue motor
    4,Magiceye sensor
    5,DEVELBISS spray gun
    IR dryingoven & UV curing oven 1,Inside size:1.2*20*0.6m
    2,TEM:50-150 degrees
    3, IR heater (1KW each one) & UV curing lamp. 3000W/piece
    4,Mirror stainless steel inner wall
    5,T50mm rock wood thermal insulation
    6,China motor
    7,OMRON Temperature card
    Line control system 1,PLC touching screen
    2,air switch&overload ensure
    3,Taiwan power switch&indicator light
    4,Taiwan pneumatic elements&Magnetism valve
    5,Taiwan frequency speed converter
    Air supply system 1,Blowing Rate15000m³/hr
    2,Machine size:1.2*2.1*1.16m
    3, T 50mm sandwich steel panel  machine body
    4,China motor
    5,Taiwan frequency converter
    6,Filtering units
    Ventilation system 1,Inlet fan(Direct drive motor):Adopt big inpeller turbo fan,7.5KW,380v,50HZ,CE
    2,Outlet fan(Direct drive motor):No
    3,Painting and baking exchang system:Solenoid valve+pressure adjustment contol cylinder driven damper exchange
    4,Fan Capacity:15000m³/hr
    5,Air Flow Speed:0.23m/s in empty booth,0.25-0.35m/s in loaded booth
    Warranty  time 1year

    4.Delivery

    Normally we will make Cargo delivery within 30 working days beside there is some special material was not able to odered by normally time.For whole line dispatch we make FCL Sea shipping based on FOB Shenzhen or CIF.Customer should help to unloading when cargo arrived destination port.



    5.Payment

    1. The first deposit is 50%.

    2. The second payment is 40%( Since the cargo was qualified inspected as per final design drawing.Before shipping)

    3. The Final payment is 10%( Paid off within 7days since cardo was installated and qualified tested at customer workshop as per final system drawing and workpiece)



    6. Installation

    Enginners workers are avilable to make 20days installation and 5days testing production at customer’s factory  based on final contract design drawings.Kindly note that for oversaes installation, customer helps provide Enginner workers Reture Air tickets, visa,foodand hotel live room at local country.



    7.Maintenance Warranty:

    One year warranty will be provided on the condition of normal operation of the machine. During the period of warranty, damaged parts could be exchanged at free if the damaged is owing to bad quality of the goods, Damaged parts is required to return us. If it was damaged by human being, parts will be exchanged or repaired at cost as quotation price. ( Enginner overasea transportation & visa fee not included)

    We also offer 24 hours online support.if you get any problems please contact with by

    1.Trademanager——fodmachine

    2.Email displayed on our website.

    3.Mobilephone—— +0086-13929213327

    4.Skype:  ———– ucan20100809



    Full Automatic Painting Production  photo show for reference.



                                                                              Manual  Loading









                                              Automatic Antistatic Pre-treatmen







                                                                           Base painting





                                                                              Flash off

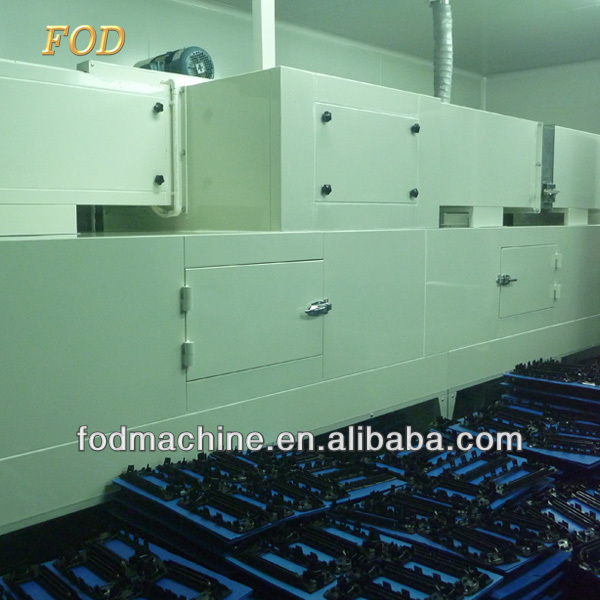

                                           IR Paint drying oven





                                                                        Vacuum metallazition





                                                                             Top UV Painting





                                                  UV curing





                                                                                Manual  Loading





                 Paint supply & Mixing Room for reference.
