Five year mainternance Robotic spray painting line for OU paint,UV paint spraying

Short Description:

Type: Automatic Control Other: Intellegent Spraying Robot Application: Industrial Automaticspray painting Spraying method: On-line Traking Spraying Automatic Grade: Fully Automatic Spray gun: Devilbiss/Graco Spraying for: lacquer paint,PU,UV paint finishing Packaging & Delivery Packaging Details Film and wooden case Delivery Time 20days 1.Robotic spray painting line Brief Automatic Robotic spray painting line which support one-step automatic painting production includin...


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Type:
    Automatic Control
    Other:
    Intellegent Spraying Robot
    Application:
    Industrial Automaticspray painting
    Spraying method:
    On-line Traking Spraying
    Automatic Grade:
    Fully Automatic
    Spray gun:
    Devilbiss/Graco
    Spraying for:
    lacquer paint,PU,UV paint finishing

    Packaging & Delivery

    Packaging Details
    Film and wooden case
    Delivery Time
    20days

    1.Robotic spray painting line Brief

    Automatic Robotic spray painting line which support one-step automatic painting production including: Loading—Antistatic dust-free—Robot spray system —Flash off—Top coat——Paint drying—-UV curing—-cooling—Unloading. It’s also widely used together with Vacuum metallization treatment to provide high quality surface treatment for Plastic toys, Car spare parts, frames parts, Motorbike spare controller, Tablet computer pad shell, Clock frame, Wood door panel.



    2..Robotic spray painting line Main Advantage

     2.1. More flexible spray angles and distance

     2.2 Designed as per customers requirement

     2.3 Robot high spray rate

     2.4 Core technology support

     2.5 high quality guarantee

     2.6 less maintenance

     2.7 various materials such as plastic, metal and wood industries

     2.8 full automatic controlled by PLC touch screen



    3. Robotic spray painting Line Main Systems

    1)Electrostatic& Flame pre-treatment  booth :

    2)3Axis/4Axis/5Axis/6Axis Robot spray painting system

    3)Devilbiss/Graco Automatic Spray gun

    4)IR drying oven

    5)UV curing oven

    6)Chain Conveyor system

    7) Air supplying unit

    8) Graco Paint mixing& supply system

    9)PLC touch screen control system

    1,In put

            110V/220V/380/415V/440V,50HZ

    2,Output Power

            as per final design

    3,Max Spraying Area

            L3000mmX W1500mm

    4,No. Spray Gun

            1-4 PCS

    5, Spay coating type

            Robotic spray system

    6Spray robot structure

            5 Axis wrist rotation-145°~+145°,

           Max arm 1500mm.  Body weight:110kg

           Acceptance inertia moment 0.2kgs.suqare m

            Install environment 0~40℃,20~80%RH

    7, Oven temperature

            0-150 adjustable

    8, Conveyor Speed

            0-6m/min adjustable

    9,Control Panel

            PLC touch screen

    10,Main Material

            Stainless  steel & Steel

    11,Widely Application

    Wood panel, Laptop, display, LCD TV,Cellphone,MP3,Button,Desk computer Keyboard, Portable hard drive, Plastic ball, Car spare parts,  Photo Frame,

    4.Robotic spray painting Line Picture Show

                                                                           4.1 Robot Spray system



                                                                            Automobile Bumper

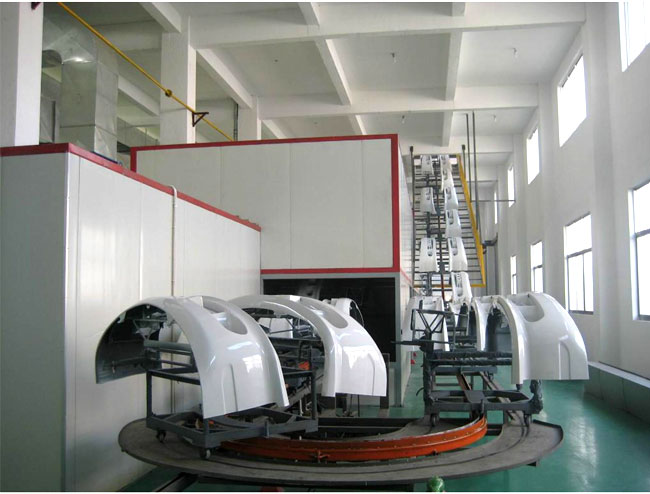

                                                        4.2 Ground rack conveyor system

    4.3  Paint Drying & Curing oven

    4.4 Paint mixing system



    5.Maintenance Guarantee

     One year warranty will be provided on the condition of normal operation of the machine. During the period of warranty, damaged parts could be exchanged at free if the damaged is owing to bad quality of the goods, Damaged parts is required to return us. If it was damaged by human being, parts will be exchanged or repaired at cost as quotation.

    Engineer is available to oversea for installation,trainning and maintenance.

    6.Fast Shipping

    1.Deliery within 10working days.

    2.FOB Shenzhen or CIF sea shipping.

    3.Wooden case package avoiding damage
