Industrial Central Air Conditional Project
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FOD
Product describtion
The central air-conditioning system consists of one or more cold and heat source systems and multiple air-conditioning systems. This system is different from traditional refrigerant-type air-conditioning systems (such as single-body units, VRV) that centrally process air to meet comfort requirements. The principle of liquid vaporization refrigeration is used to provide the required cooling capacity for the air conditioning system to offset the cooling load of the indoor environment. The heating system provides the required heat for the air conditioning system to offset the hetf the indoor environment.
Air conditioning cabinet Air fiter box
Card-type air handle Chilled water pipeline

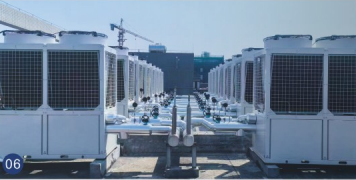

Air ducts for supply and return air systems Air cooling modular unit
Application area:
Industrial Central Air Conditioning Systems are widely utilized across various industrial sectors due to their high efficiency, stability, and adaptability,primarily for precise control of temperature, humidity, cleanliness, and air circulation. Key application areas include:Manufacturing,Chemical and Pharmaceutical Industries,Food and Beverage Processing,Energy and Heavy Industries Warehousing and Logistics, Laboratories and Research Facilities ,Specialized Environments.
|
Technical parameters |
|||||
|
Air cooling modular unit |
|||||
|
YDFL(A/H/B)M |
65-Z |
100-Z |
130-Z |
||
|
Refrigeration capacity |
KW |
65.0 |
100.0 |
130.0 |
|
|
10⁴ kcal/h |
5.6 |
8.6 |
11.2 |
||
|
Cooling input power |
KW |
21.0 |
28.4 |
39.3 |
|
|
Heating Capacity |
KW |
69.0 |
106.0 |
138.0 |
|
|
10⁴ kcal/h |
5.9 |
9.1 |
11.9 |
||
|
Heating input power |
KW |
21.7 |
29.8 |
41.5 |
|
|
Current / Voltage |
A |
38.9 |
58.2 |
77.6 |
|
|
Maximum current |
A |
47.5 |
69.8 |
93.1 |
|
|
Partial heat recovery |
KW |
19.5 |
30.0 |
39.0 |
|
|
Power supply |
3P-380V-50Hz |
||||
|
Compression molding machine |
Type |
Hermetic scroll type |
|||
|
Number of units |
2 |
3 |
2 |
||
|
Water side heat exchanger
|
Type |
High-efficiency shell-and-tube type |
|||
|
Frozen water volume |
m³/h |
11.2 |
17.2 |
22.4 |
|
|
Water resistance |
KPa |
42 |
48 |
50 |
|
|
Fan |
Interface size |
DN |
65 |
65 |
65 |
|
Type |
Low-noise high-efficiency axial flow type |
||||
|
Quantity |
unit |
2 |
2 |
2 |
|
|
Heat recovery device
|
Type |
High-efficiency shell-and-tube type |
|||
|
Hot water volume |
m³/h |
3.4 |
5.2 |
6.7 |
|
|
Water resistance |
KPa |
35 |
38 |
40 |
|
|
Refrigerant |
Interface size |
DN |
32 |
32 |
40 |
|
Type/throttling method |
R410a/Electronic expansion valve |
||||
|
Charge |
kg |
13.0 |
20.2 |
26.9 |
|
|
Unit size |
length |
mm |
2100 |
2200 |
2200 |
|
Width |
mm |
900 |
1100 |
1100 |
|
|
Height |
mm |
1950 |
2440 |
2440 |
|
|
Operating weight |
kg |
650 |
850 |
950 |
|
Maintenance Guarantee
One year warranty will be provided on the condition of normal operation of the machine. During the period of warranty, damaged parts could be exchanged at free if the damaged is owing to bad quality of the goods, Damaged parts is required to return us. If it was damaged by human being, parts will be exchanged or repaired at cost as quotation.
Engineer is available to have installation,trainning serive for oversea customer.
Fast Shipping Delivery
1.Deliery within 10working days.
2.FOB Shenzhen or CIF sea shipping.
3.Wooden case package avoiding damage
