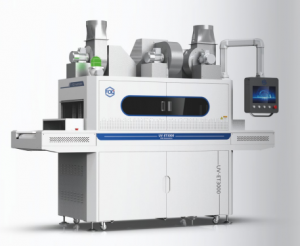

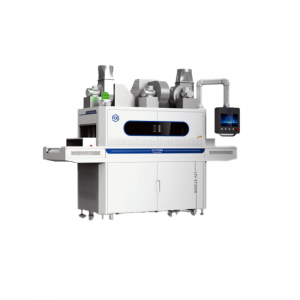

Precision UV Curing Equipment for Smartwatch Display & Bonding

Short Description:


  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    1.Place of Origin:

    Guangdong, China (Mainland)

    2.Brand Name:

    FOD

    3.Model Number:

    UV-ET3000

    4.Condition::

    New

    Product description:

    The UV curing machine utilizes advanced ultraviolet (UV) light technology to instantly cure photosensitive materials such as UV inks, coatings, and adhesives.

    With its exceptional performance in ultra-high efficiency, energy saving, and quality enhancement, it has become an indispensable and pivotal equipment in numerous manufacturing sectors including printing, coating, electronics, medical, and automotive industries. It empowers customers to build intelligent and eco-friendly modern production lines.



    Technical parameters

    Machine model UV-ET3000
    Control system Intelligent UV Power Supply
    Adjustable settings Steplessly Adjustable
    Lamp power 5.6KW(Mercury Lamp)*6=33.6KW
    Available Lamp Options LED Lamp-Skin-Sensing Lamp-Mercury Lamp
    Conveyor Belt Width 400MM
    Total machine power 38KW
    Overall dimensions L3000*W1000*H2100mm
    Conveyor speed 0-8m/min
    Lamp wavelength 200nm-450nm(Peak Wavelength:365nm)
    Conveyor belt material Teflon Conveyor Belt
    Infeed height 30-200mm
    Input voltage 380V50HZ

     6.After-sales Service Provided:

    Engineers available to service machinery overseas

    7.Warranty::

    12 Months

    8.Packaging Details;

    Film and Wooden box

    9.Delivery Time:

    30 days

     10.Maintenance Guarantee

     One year warranty will be provided on the condition of normal operation of the machine. During the period of warranty, damaged parts could be exchanged at free if the damaged is owing to bad quality of the goods, Damaged parts is required to return us. If it was damaged by human being, parts will be exchanged or repaired at cost as quotation.

    Engineer is available to have installation,trainning service for oversea customer.





    11.Fast Shipping Delivery

    1.Deliery within 10 working days.

    2.FOB ShenZhen or CIF sea shipping.

    3.Wooden case package avoiding damage
