Place of Origin:
Guangdong, China (Mainland)
Brand Name:FOD
Model Number:
UV-ET3000
Condition::
New
Product description:

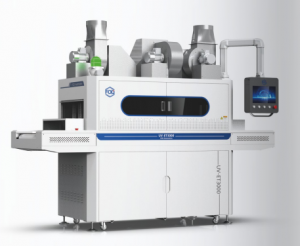

The UV curing machine utilizes advanced ultraviolet (UV) light technology to instantly cure photosensitive materials such as UV inks, coatings, and adhesives.
With its exceptional performance in ultra-high efficiency, energy saving, and quality enhancement, it has become an indispensable and pivotal equipment in numerous manufacturing sectors including printing, coating, electronics, medical, and automotive industries. It empowers customers to build intelligent and eco-friendly modern production lines.
Technical parameters:
| Machine model | UV-ET3000 |
| Control system | Intelligent UV Power Supply |
| Adjustable settings | Steplessly Adjustable |
| Lamp power | 5.6KW(Mercury Lamp)*6=33.6KW |
| Available Lamp Options | LED Lamp-Skin-Sensing Lamp-Mercury Lamp |
| Conveyor Belt Width | 400MM |
| Total machine power | 38KW |
| Overall dimensions | L3000*W1000*H2100mm |
| Conveyor speed | 0-8m/min |
| Lamp wavelength | 200nm-450nm(Peak Wavelength:365nm) |
| Conveyor belt material | Teflon Conveyor Belt |
| Infeed height | 30-200mm |
| Input voltage | 380V50HZ |
After-sales
Service Provided:
Engineers available to service machinery overseas
Warranty::
12 Months
Packaging Details;
Film and Wooden box
Delivery Time;
30 days
Maintenance Guarantee
One year warranty will be provided on the condition of normal operation of the machine. During the period of warranty, damaged parts could be exchanged at free if the damaged is owing to bad quality of the goods, Damaged parts is required to return us. If it was damaged by human being, parts will be exchanged or repaired at cost as quotation.
Engineer is available to have installation,trainning service for oversea customer.
.Fast Shipping Delivery
1.Deliery within 10working days.
2.FOB ShenZhen or CIF sea shipping.
3.Wooden case package avoiding damage
.Contact us for the latest Price of UV Curing Equipment.
